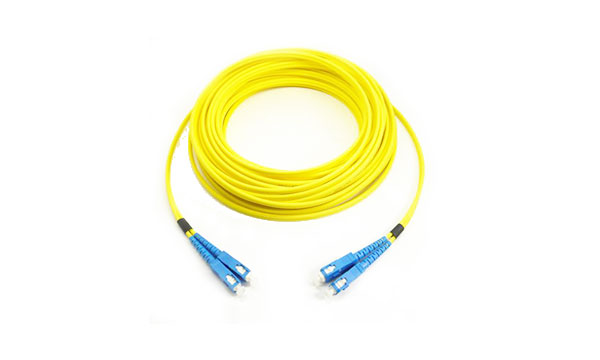

SC connector

 Telecommunication, Test measurement, Lan Network, Fibe CATV,FTTH

1

High Return Loss, Low Return Loss

2

High reliability and Stability,with good repeatability and interchangeability

Standard: IEC61754,YD/T1272,GR326
Material: Accord to ROHS Standard, Flammability, Meet Clients requirement.
Feruller End face:PC,APC
Fiber type：SM/MM
Opitc Cable:0.9mm,2.0mm3.0mm with Simplex or Duplex and 4,6,8,12,24,48 core
Repeatability: ≤0.20dB
Durability: ≥500times


Patchcord category	End-Face	Insertion Loss IL(dB)	Directivity (dB)	Return Loss RL(dB)	End-face requirement
Engineering-level	APC/SM	≤0.35	/	≥60	A2 Class
	UPC/SM	≤0.20	/	≥50
	PC/SM	≤0.35	/	≥40
	PC/MM	≤0.35	/	/
Device-level	APC/SM	≤0.20	/	≥65	A Class
	PC/SM	≤0.20	/	≥50	A Class
	PC/MM	≤0.20	/	/	A2 Class
The test level	APC/SM	≤0.20	≤0.10	≥65	A Class
	PC/SM	≤0.20	≤0.10	≥50
	PC/MM	≤0.20		/
Standard Level	APC/SM	≤0.10		≥65	A Class
	PC/SM	≤0.10	≤0.05	≥55
	PC/MM	≤0.10	≤0.05	/
